$895.00

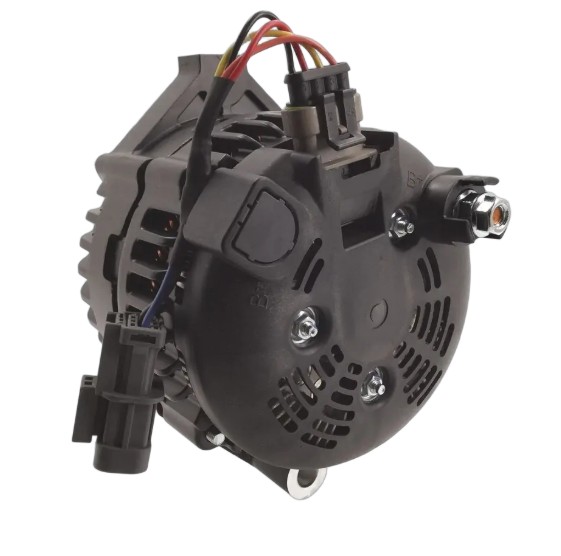

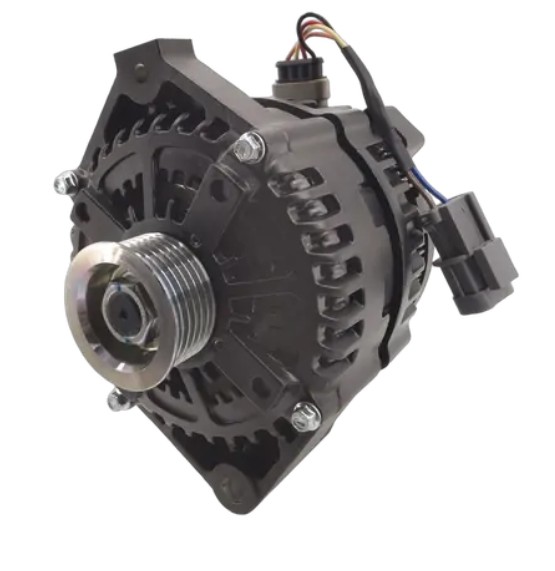

Jaylec Black Series 240A Alternator – Ford
Jaylec Black Series Performance Alternator, 240 A, with a Ford 3‑inch standard mount
Street/Strip - Intended to run high-demand components at idle, such as dual thermos-fans, injection systems, air conditioning, electric steering, monitoring systems, upgraded lighting systems and winches, while maintaining the battery at the desired levels.
Black Coating - looks professional while being protected against oils, solvents & fuels

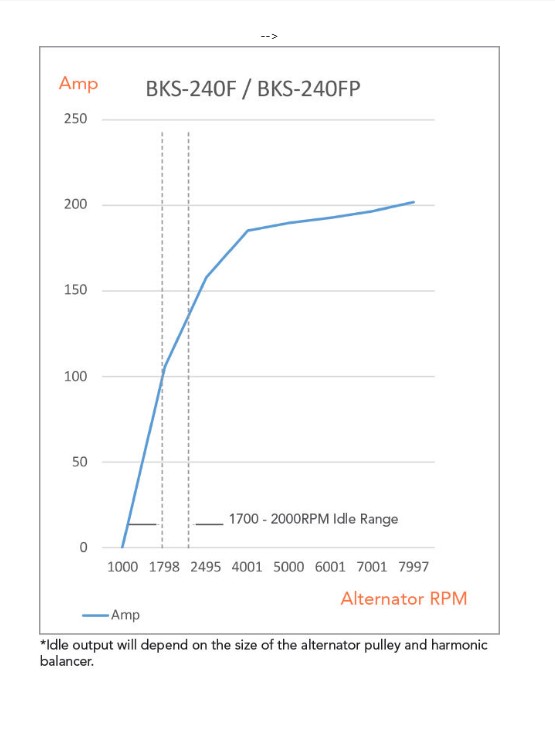

Upgraded Technology - Later model types of technology allows this product to charge higher @ lower RPM
Specifications:
| Voltage | 12V |
| Amperage | 240A |
| Mount Leg ID | 76mm |
| C-C Mounts | 175mm |
| Hole ID Top | M8 |
| Hole ID Bottom | 11mm |
| Shaft Size | 17mm |
| Pulley Type | 6PV, FIXED |
| Pulley Grooves | 6 |
| Pulley Diameter | 56mm |
| Regulator Type | INTERNAL |
| Connections Plug # | EP39 |
| Terminals | B+, L, S |
| Excitation | EXTERNAL |
| Ground | NEGATIVE |
